Marine Fairlead

A marine fairlead (also called a chock, hawsehole, or cable hole) is a device or structure on a ship, usually located on the bulwark, deck, or hull in specific locations, used to guide and secure ropes (such as anchor cables, mooring lines, etc.) for use when the ship is docking, anchoring, or towing. It is typically a round or oval hole made of metal or a sturdy material, with a smooth inner surface to reduce rope wear and tear, and capable of withstanding significant tensile forces.

Main Functions:

1. Guiding Ropes: Ensures ropes run in the correct direction, avoiding entanglement or friction with other hull structures.
2. Reducing Wear: The inner surface of the fairlead is usually specially treated (e.g., polished or fitted with bushings) to protect the rope from wear.
3. Securing and Positioning: During mooring or towing, the fairlead helps secure the rope direction and maintain the ships stability.
4. Safety Assurance: By standardizing the rope path, it reduces safety risks during operation.

Common Types:

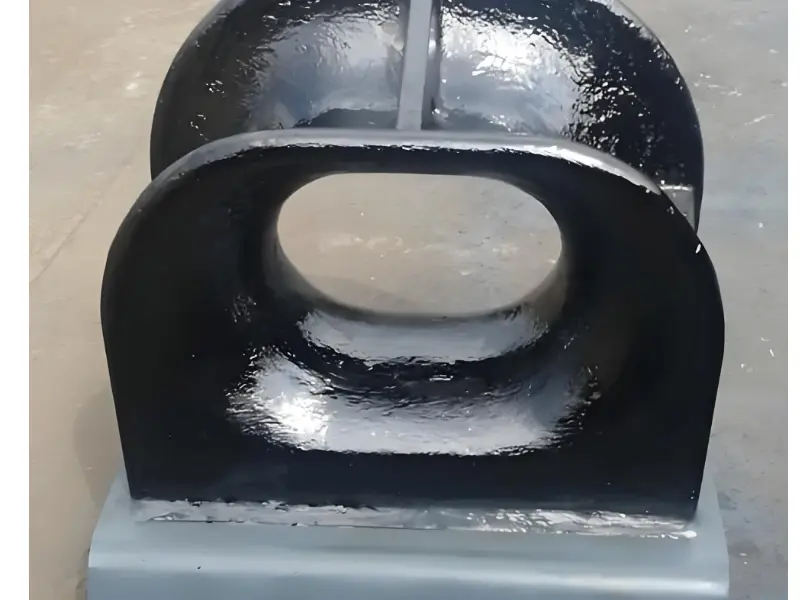

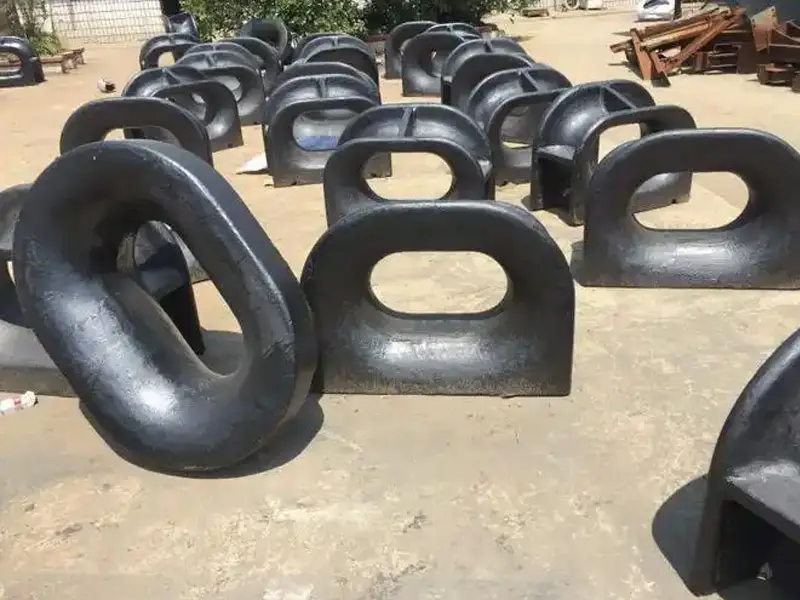

• Closed Fairlead: A completely enclosed hole through which the rope passes, commonly found on the bulwark.
• Open Fairlead: A fairlead with an opening, allowing for quick insertion or removal of the rope.

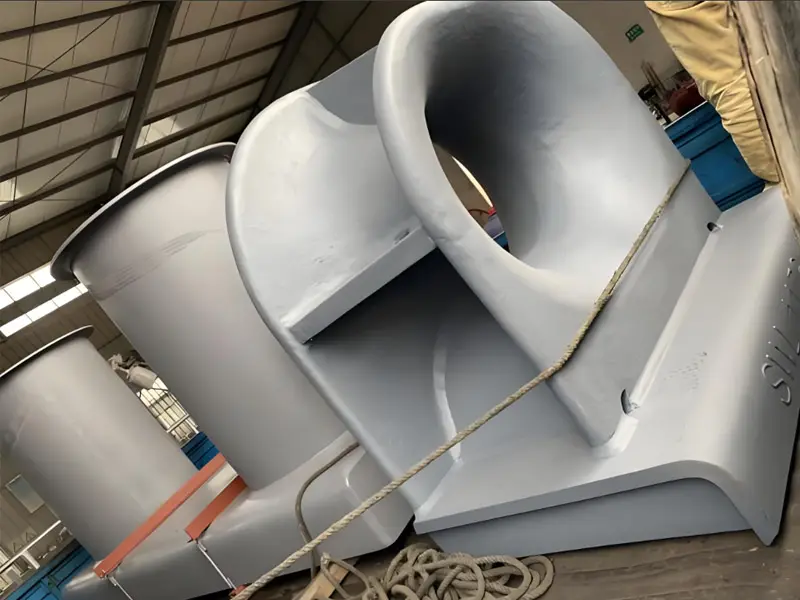

• Roller Fairlead: Equipped with internal rollers to further reduce rope friction, suitable for large ships or heavy ropes.
