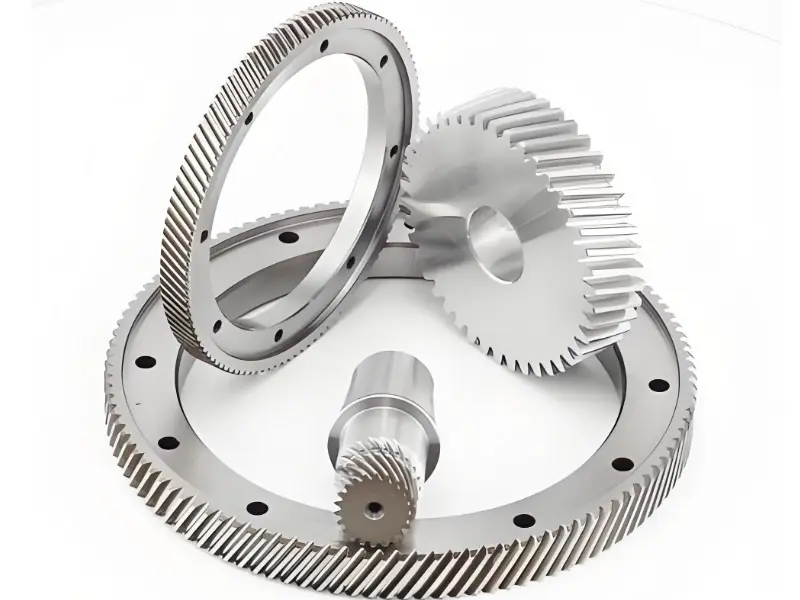

Aerospace Precision Gear Grinding

Aerospace precision gear grinding refers to the manufacturing technology of processing gears through precision grinding processes for high-reliability applications such as aero-engines, missile systems, helicopter transmissions, and satellite gearboxes. These gears require extremely high precision (tooth profile error ≤2-5μm, surface roughness Ra≤0.2μm), fatigue resistance, and low noise to withstand high speeds (>5000 rpm), high loads, and extreme environments (such as high temperature >800°C, low temperature -50°C, vacuum). Gear grinding is the core step of gear finishing, using grinding wheels to remove the deformation and oxide layer of the gear after heat treatment, ensuring gear meshing accuracy and life. Compared with gear milling or hobbing, gear grinding can improve gear accuracy by 2-3 levels (AGMA Q12-Q15 standard) and is widely used in national defense and military industries (such as F-35 fighter gearbox) and aerospace (such as rocket turbopump gears).

1. Material Properties

Aerospace gears commonly use high-strength, heat-resistant alloys to ensure reliability under high stress:

• High-Temperature Alloys (e.g., Inconel 718, GH4169): High temperature resistance, oxidation resistance, suitable for engine gears.
• Titanium Alloys (e.g., Ti-6Al-4V): Lightweight, high strength-to-weight ratio, suitable for satellite and drone gears.
• Powder Metallurgy Alloys (e.g., 17-4PH): High hardness (HRC>45), easy to precision form.
• Other: Tungsten carbide or ceramic composite, used for extreme wear-resistant applications.

These materials are difficult to cut, and gear grinding needs to control the heat-affected zone (HAZ<50μm) to avoid micro-cracks.

2. Processing Methods

Precision gear grinding emphasizes multi-axis linkage, numerical control, and automation to achieve complex tooth shapes (such as helical gears, bevel gears). Common methods include:

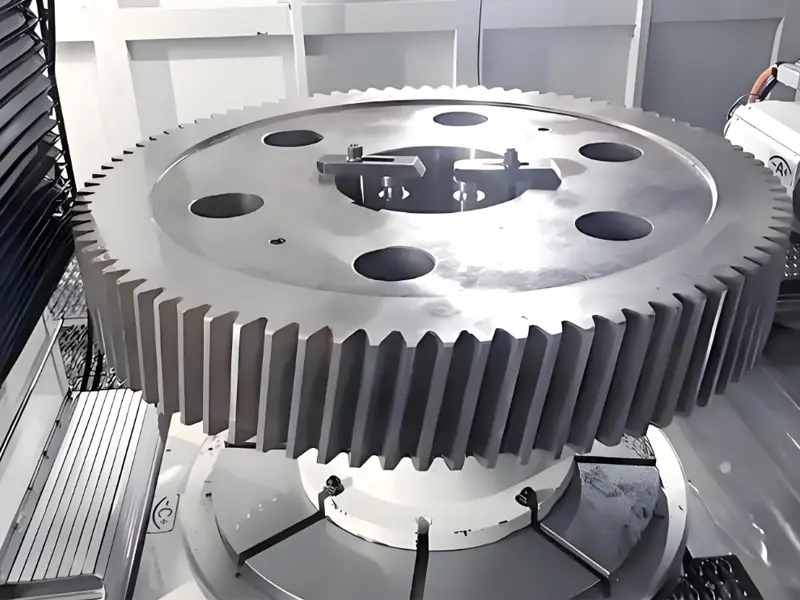

• Form Grinding: Using a formed grinding wheel to grind the tooth shape at once, suitable for small-batch military gears. High precision (pitch error ≤3μm), but grinding wheel dressing is frequent.

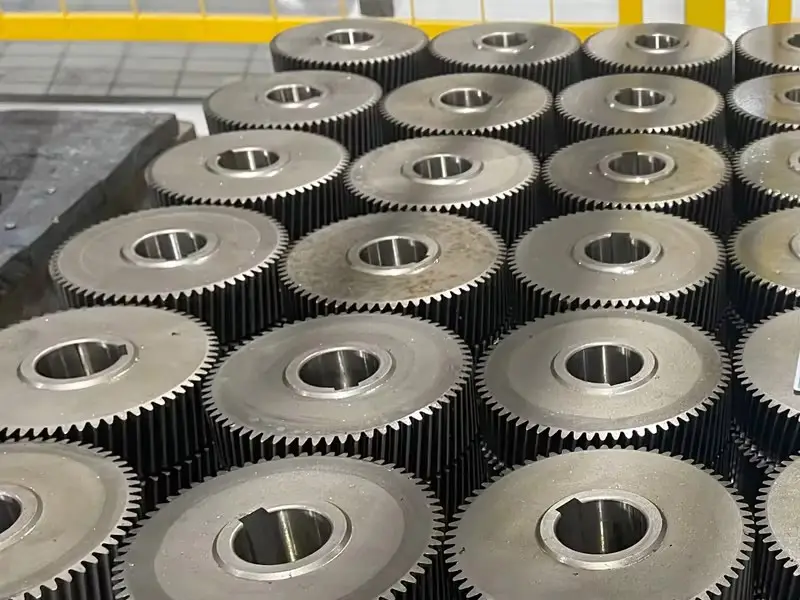

• Generating Grinding: Such as worm grinding, simulating the hobbing principle, suitable for mass production. Machine tools such as Liebherr or Kapp, high efficiency (processing time reduced by 40%).

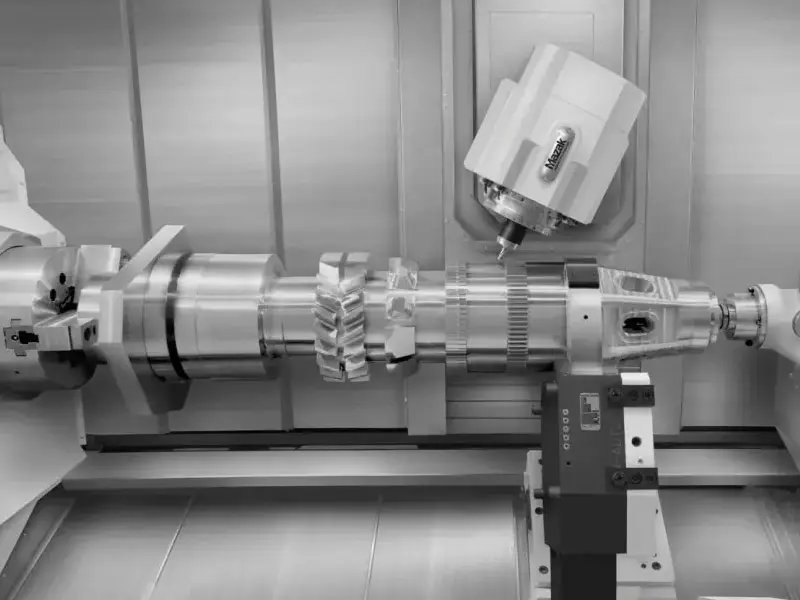

• 5/6-Axis CNC Grinding Machines: Integrated with CBN (cubic boron nitride) grinding wheels, suitable for complex curved gears. Combined with online measurement systems (such as Marposs probes) to compensate for errors in real-time.
• Electrolytic Grinding: Non-contact processing, suitable for titanium alloys, avoiding thermal deformation. Surface roughness Ra<0.1μm, suitable for aerospace precision parts.
• Auxiliary Processes: Grinding after heat treatment (such as carburizing quenching + grinding), or laser cladding to enhance tooth surface wear resistance.
