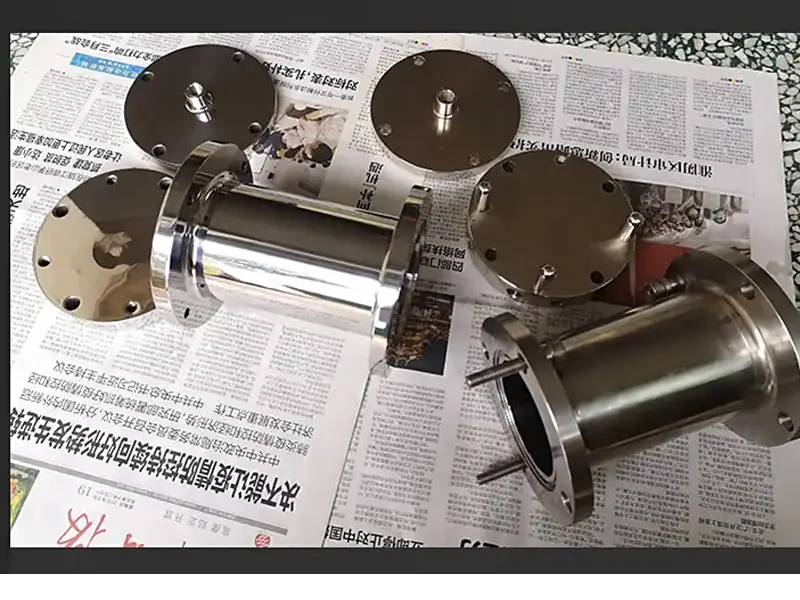

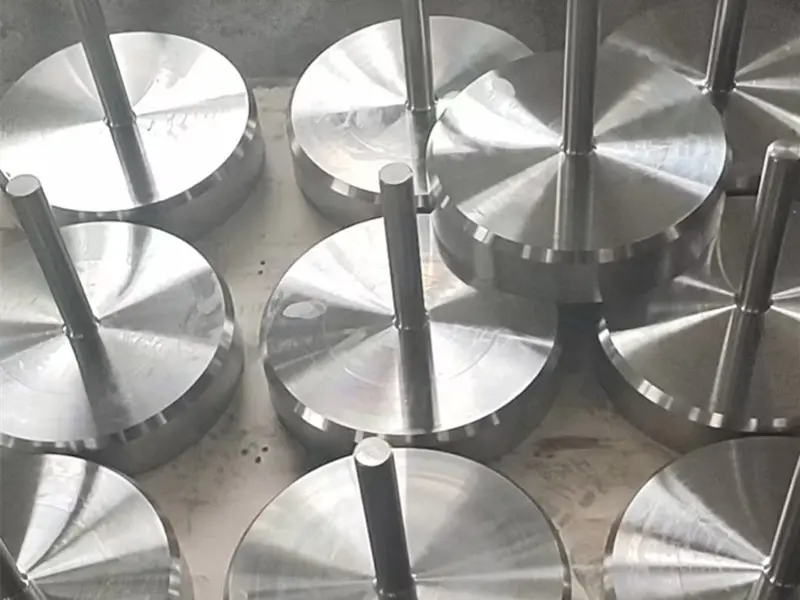

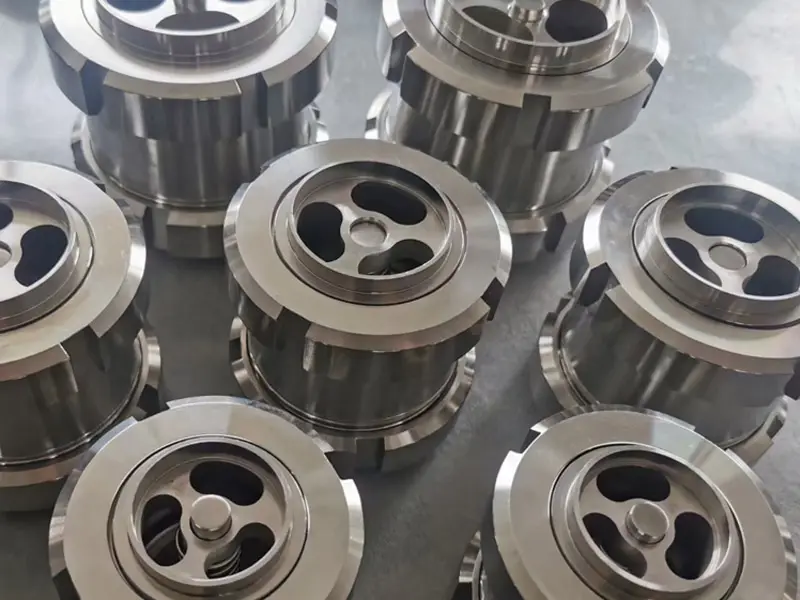

316L Marine Discharge Piston Machining Parts

A marine discharge piston (also known as a discharge valve piston or drain piston) is a critical component in marine systems used to control the discharge of liquids or gases. It is typically installed in piping systems, pumps, or storage tanks to release excess pressure, drain liquids or gases, and ensure safe system operation. A 316L stainless steel marine discharge piston specifically refers to such a component manufactured from 316L low-carbon stainless steel through precision casting or other processes. It is widely used in yachts, commercial ships, or other marine vessels due to its excellent corrosion resistance and reliability in seawater environments.

Features of 316L Marine Discharge Pistons

• Structure: Typically a cylindrical or conical piston with sealing rings (commonly made of PTFE or NBR) to ensure airtight/liquid-tight sealing. May have an internal spring or hydraulic drive mechanism.
• Manufacturing Process: Often uses precision casting (such as investment casting) to ensure high precision (tolerance ±0.05mm) and complex geometries. Subsequent processing includes CNC machining and surface polishing/passivation.
• Specifications:
  • Dimensions: Diameter typically 10-100mm, length depending on valve design (20-200mm).
  • Pressure Rating: Common PN10-PN40 (1-4 MPa).
  • Weight: 0.1-2kg, depending on the application.
• Surface Treatment: Electropolishing or chemical passivation to enhance corrosion resistance and surface finish, meeting the high-end aesthetic requirements of yachts.

Typical Applications in Yachts

• Bilge Pump Systems: Discharge pistons are used to drain bilge water, preventing hull corrosion. For example, yachts need to drain water quickly after a storm, and 316L pistons ensure long-term valve reliability.
• Seawater Cooling Systems: In engine cooling circuits, pistons control cooling water discharge, preventing overpressure (such as when yachts are sailing at high speeds).
• Fuel/Hydraulic Systems: Used in relief valves to release excess fuel or hydraulic oil, protecting pumps and pipelines.
• Sanitary Systems: In yacht sewage discharge systems, 316L pistons resist the dual corrosion of chemical cleaners and salt water.
